The HT500.2 3D Printer

Up to 30% faster

Increased positional accuracy

Enhanced maintainability

Now including 12 months extended warranty, 24 months service contracts available including technical support and on-site service

Request a Quote

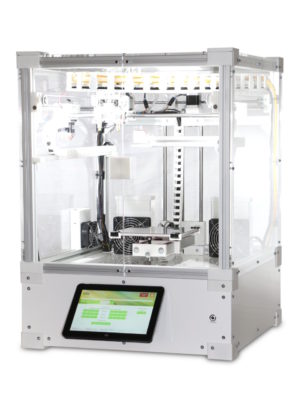

HT500.2

The HT500.2 is the 2nd generation of our proven industrial Fused Filament Fabrication (FFF) 3D printer for high-quality results – your first choice for cost effective manufacturing of individual parts through to small-batch production. With its advanced chamber design, the 3D printer builds dimensionally accurate and strong objects from engineering-grade materials.

Two Print Heads up to 500°C



Heated Build Chamber up to 70°C



Heated Print Bed up to 130°C

HT500 - Print Head Detail

Large 10L Build Volume

200x180x290mm

Flexible Resolution

Layer Heights from 0.05 to 0.6mm
Nozzle Diameters from 0.25 to 0.75mm

Applications

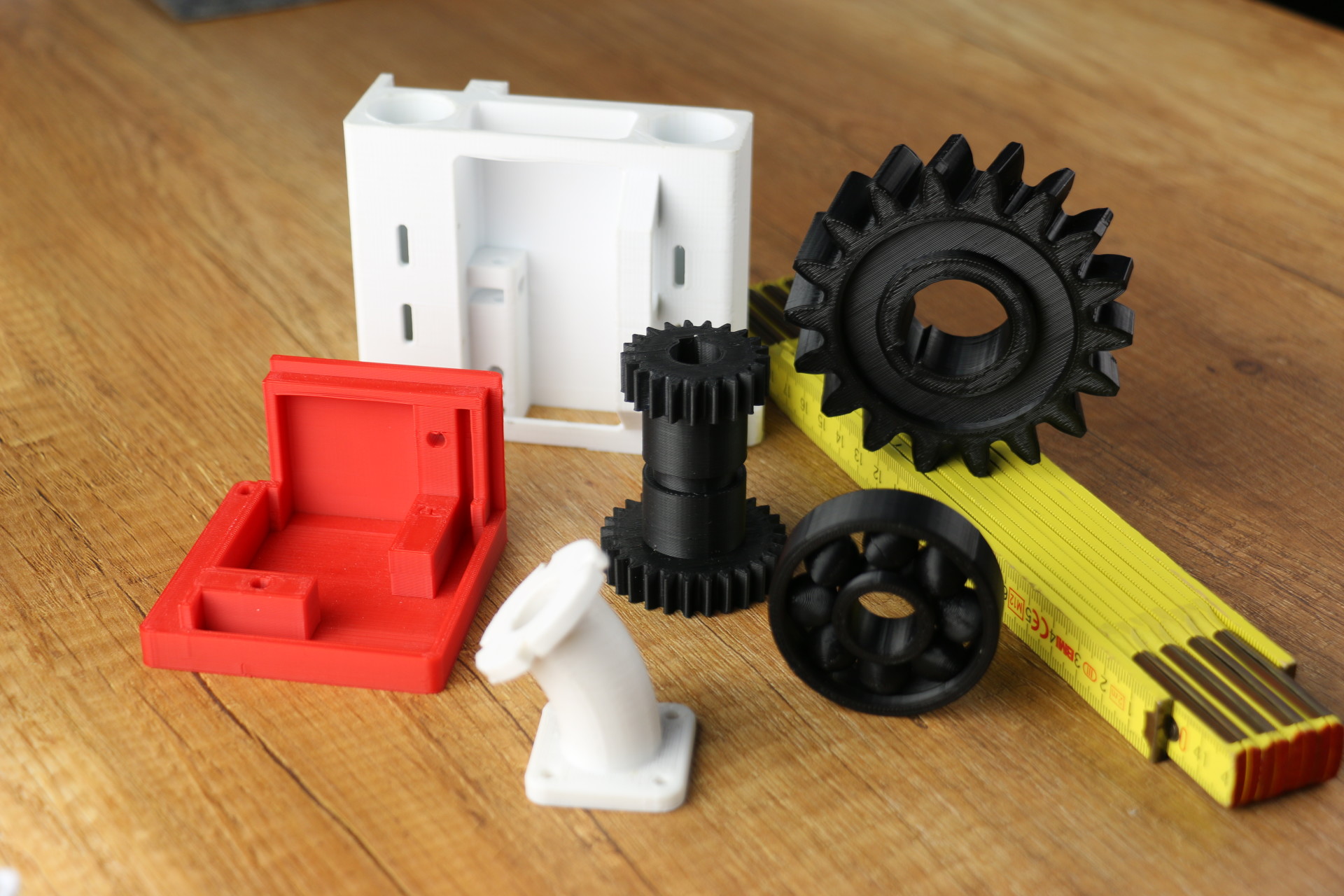

Prototyping

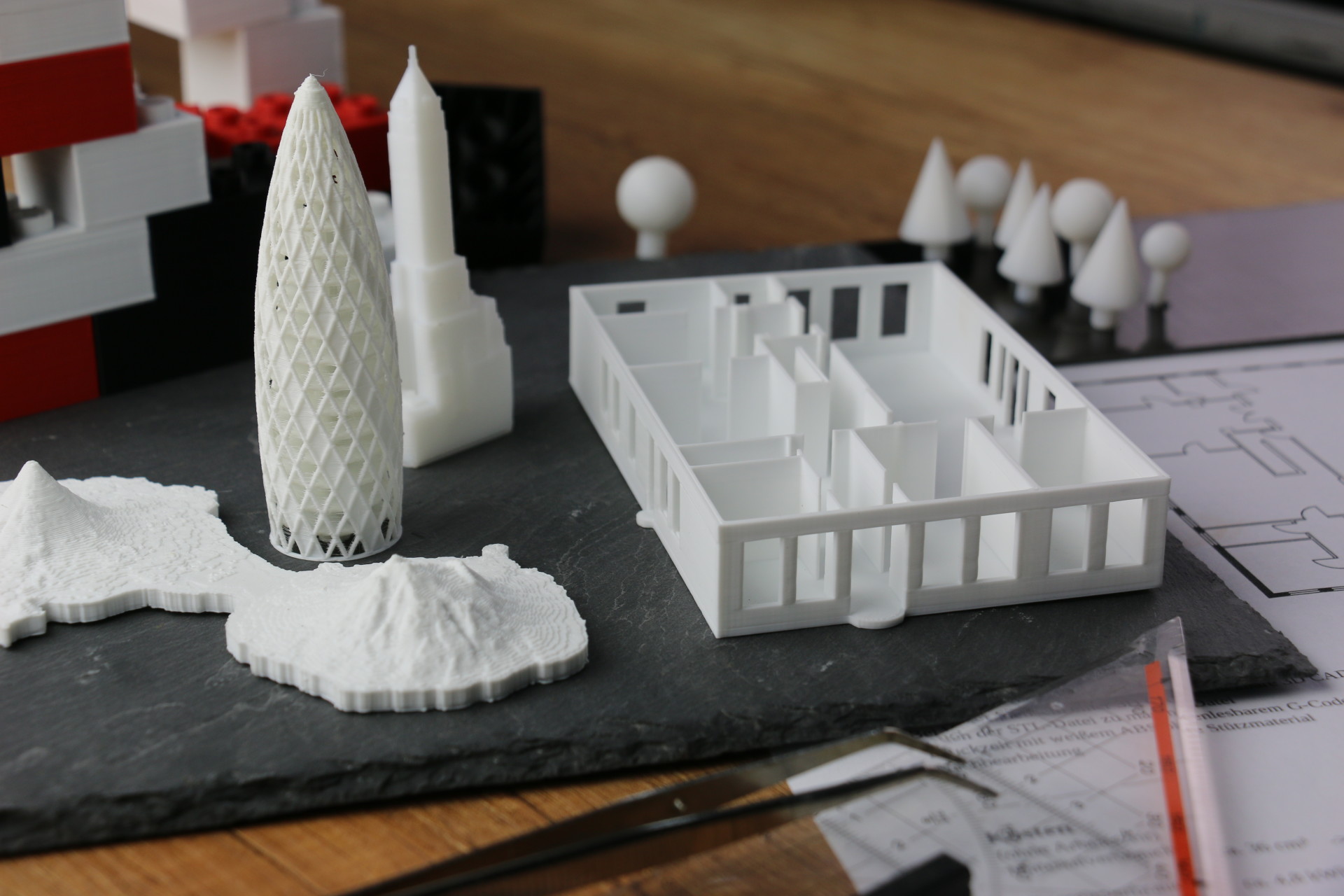

Architecture/ Model Making

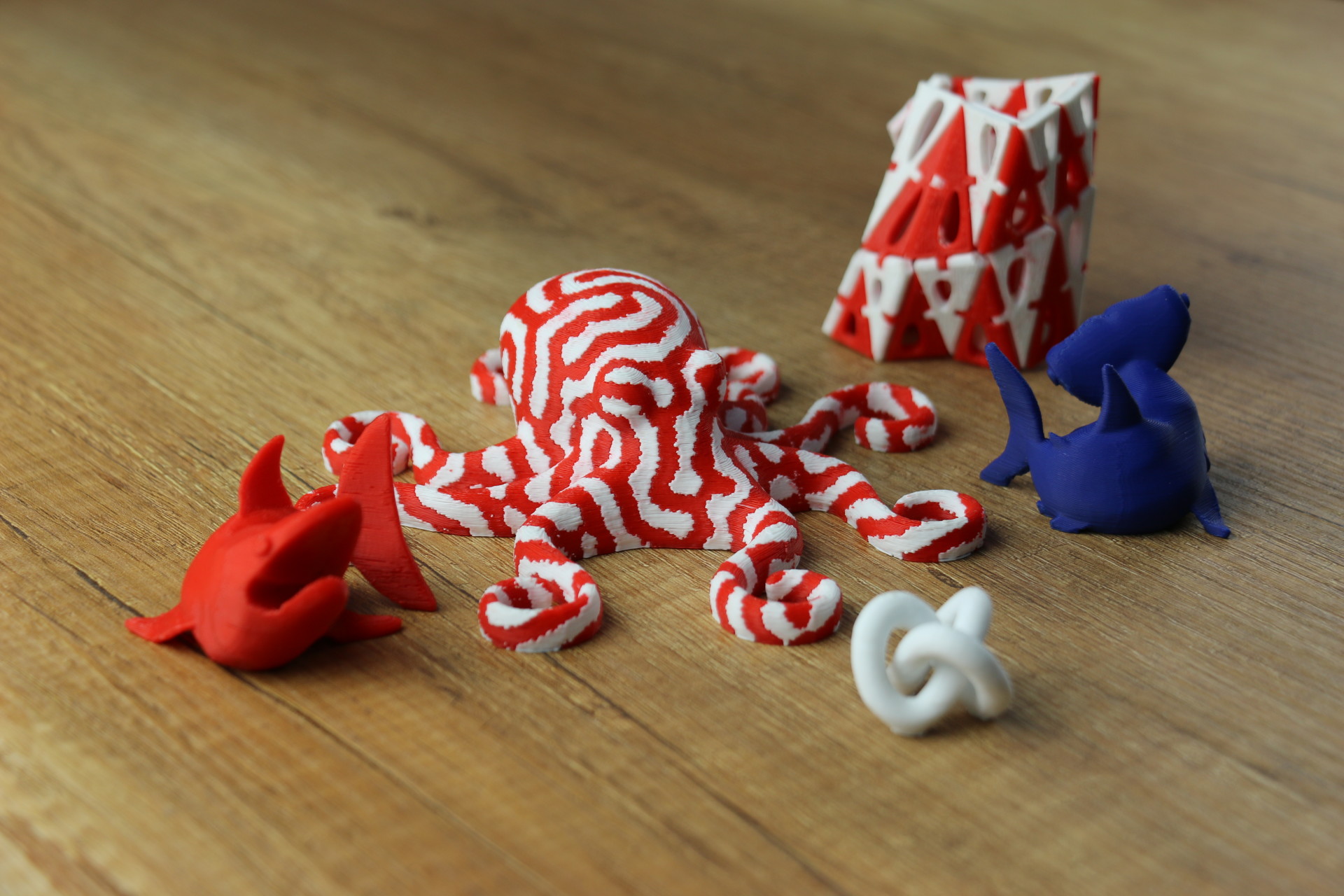

Creative

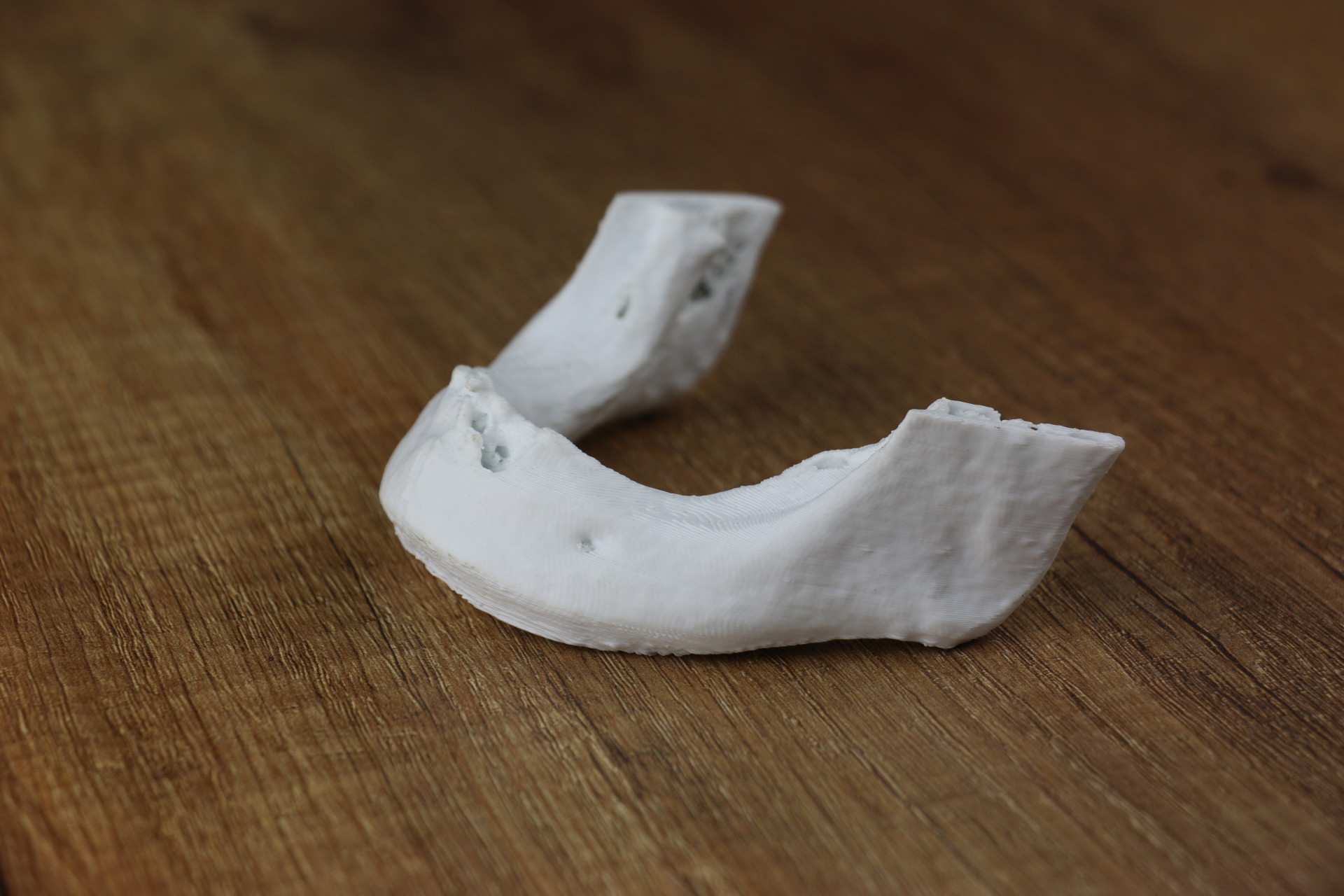

Medical Engineering

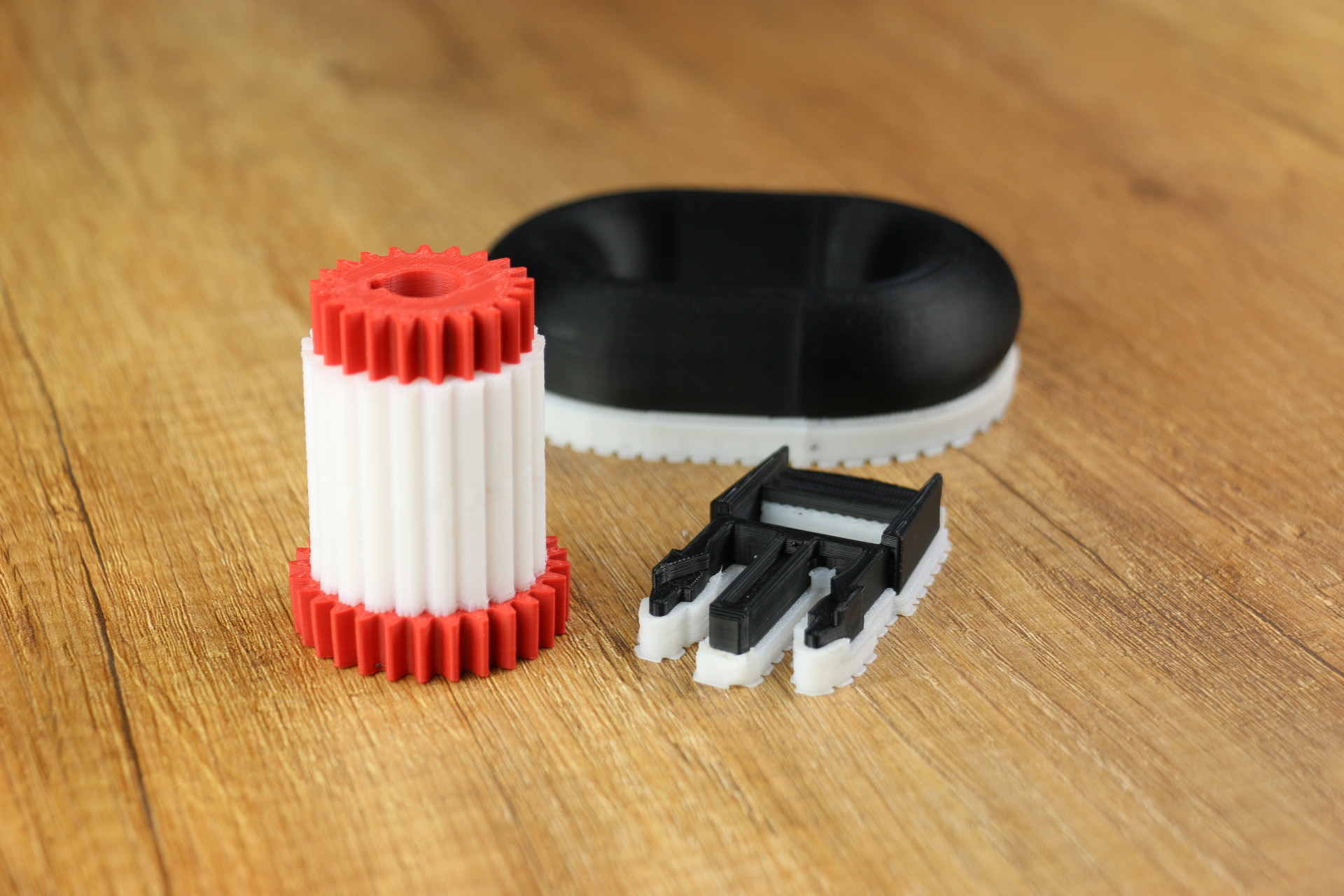

Printing with Soluble Support Materials

Demo (Previous Version)

Features

  • Stand-Alone Operation

    No dedicated computer needed, the HT500.2 features true stand-alone 3D printing. Access the 3D printer’s webinterface from your webbrowser via ethernet and upload print jobs conveniently, monitor the machine status and remaining time of a running print job.

  • Intuitive Touch Screen Controller

    All operation tasks are executable with a simple touch on the 10″ capacitive touch panel, e.g. starting a print, running calibration wizards etc.

  • Quick-Exchange Nozzle Tips

    Install different nozzle diameters within seconds. The printer comes with 2 pcs. Ø0.35mm and 2 pcs. Ø0.5mm nozzles – more spare nozzle tips and sizes available separately.

  • Empty Filament Spool Recognition

    Never fear that running out of filament may ruin that hours lasting print job – the printer will recognize used up filament spools and pause print for reloading! Even when happening mid-night, you’ll find your HT500.2 happily waiting for your assistance in the morning.

  • Easy and Precise Calibration

    The print table has semi-automatic leveling with a pictured calibration wizard on the touch interface. Both extruder nozzles are precisely adjustable with automatic height alignment functionality to guarantee best dual extruder experience.

  • Safety & CE Marking

    An activated carbon air filter ensures non-smell operation in office environments. CE Marking according to EU requirements for product safety – an essential criteria for our business customers.

  • Open Source Technology

    Modify any operating parameter you can imagine like speeds, temperatures, resolution; do hardware or software modifications according to your needs if required. Power to you!

  • Support & Spare Parts

    Get in contact with our e-mail support line any time to get assistance along technical issues with your HT500.2 3D Printer. Additionally there’s our extensive Online User’s Manual docs.kuehlingkuehling.de featuring in-depth technical background information, maintenance guidelines, general tips&tricks for improving your quality output with tricky 3D models, as well as troubleshooting with step-by-step diagnosis and solutions.

  • Tools & Warranty Included

    Each HT500.2 3D Printer comes with a full 12-part high quality tool set you may require for any operational and maintenance task you could imagine during daily use.

    Uptime and reliability is additionally enhanced by our included 12 months extended warranty. Supplemental 24 months service contracts are available.

Specifications

3D printing technology

Fused Filament Fabrication (FFF)

Print Resolution

Minimum layer thickness approx. 0.05mm (resolutions below 0.1mm are dependend on installed nozzle diameter, used print material etc.; some materials of low viscosity may even allow thinner layers)

Filament

Ø2.85 +/- 0.1mm

Build Volume

200x180x290mm (10.44 liter)

Model Materials

ABS, HIPS, PC, PET(G), PVA, PLA, TPEs, composites (Wood/Metal etc.), igus Tribo Filaments, PA12* (* may be limited to smaller objects)

Support Materials

Soluble support options available for ABS, PET(G), PLA, PLA-/PETG-based composites; Break-away support available for any processed model material

Print Heads

Two high temperature print heads (500°C max.) for multi-material, multi-color and multi-nozzle-diameter operation; comes with 4 extruder nozzle tips of 2 different diameters (0.35/0.50); 2 pcs. 0.35mm nozzle pre-installed; more nozzle diameters available separately (0.25/0.75)

Print Head Cleaning System

For best results in dual material prints

Cooling

Watercooled stepper motors, print heads and LED lighting; low maintenance due to closed circuit

User Interface

Integrated 10″ capacitive touch screen controller for stand-alone operation

Network Connection

Ethernet 10/100, RJ45

Automatic Calibration

Via Touch Interface

Chamber

Actively heated build environment (up to 70°C) for durable prints from engineering plastics

Enclosure

Rigid aluminum frame, fully enclosed with clear acrylic glass; built-in LED lighting

Print Bed

Heated (up to 130°C)

Build Surface

Exchangeable maintenance-free continuous use high performance build plates, compatible with ABS, PC, PETG, HIPS, PVA, PLA, TPU, PA12 without priming/pretreatment/coating; one build plate pre-installed

Activated Carbon Air Filter

Makes printer compatible to office and living enviroments

Software

Free and Open Source slicing software, optimized configuration presets provided

Operating Systems

Windows, Mac OS X, Linux

Power Requirements

100-240V AC, 50-60Hz, 1000W max.

Dimensions

approx. 80x60x80cm (LxWxH)

Weight

49kg

Included in Delivery

12-part tool set, 2 accessory nozzle tips Ø0.5mm, 1 accessory build plate, 2 spools ABS model material á 750g, 1 power cord

Warranty Terms

12 months extended warranty

Shipping

Fully assembled and tested with CE conformity
