The VP75 Additive Manufacturing System

Massive build volume

Enhanced FFF 3D printing technology and full process automation

Outstanding ease of operation

Including 12 months extended warranty, 24/36 months service contracts available including maintenance, technical support and on-site service

Request a Quote

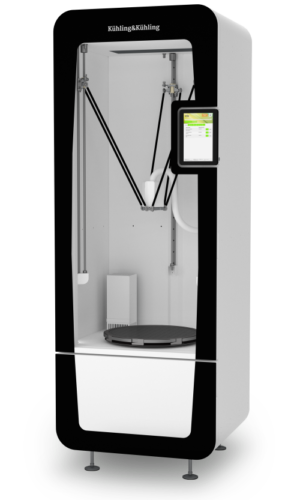

VP75

Our new large scale, high volume production unit. Processing engineering-grade materials in small- to mid-scale batches has never been as straightforward and economic.

Features

Massive 75L Build Volume (Ø400x600mm)

High Volume Output – up to 100g/h Material Deposition

Precisely heated and controlled build environment

High-performace print head for engineering-grade materials

ClogSense print head performance live analysis

ActuProbe 100% self-calibration technology

VacuFlat simple-exchange build surface fixation technology – continuous-use PEI sheet included; also accepts wide variety of substituting build surface materials up to 3mm thickness

Advanced on-board system diagnostics and process monitoring

Large integrated 10″ graphical touchscreen user interface

Attractive exterior design

24/36 months service contracts available including maintenance, technical support and on-site service

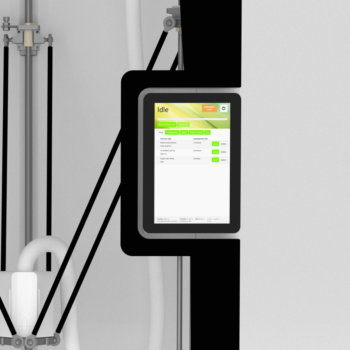

VP75 Display

Specifications

3D printing technology

Fused Filament Fabrication (FFF)

Print Resolution

Minimum layer thickness approx. 0.05mm (resolutions below 0.10mm are dependend on installed nozzle diameter, used print material etc.; some materials of low viscosity may even allow thinner layers)

Filament

Ø1.75 +/- 0.05mm

Filament spool storage in comfortably accessible big drawer at bottom of maschine

Build Volume

Ø400x600mm (75 liter)

Model Materials

So far approved filaments: Polymaker PC & PA filaments, Kühling&Kühling ABS filaments. More materials to be approved subsequently.

Print Head

High temperature print head (500°C max.); Ø0.50mm nozzle pre-installed; Ø0.75/1.00mm nozzle diameters available separately

Print Table

Heated (up to 150°C)

VacuFlat simple-exchange vacuum build surface fixation technology – continuous-use PEI sheet included; also accepts wide variety of substituting build surface materials up to 3mm thickness

User Interface

Integrated 10″ capacitive touch screen controller for stand-alone operation

Network Connection

Ethernet 10/100, RJ45

Automatic Calibration

ActuProbe 100% self-calibration technology, autonomously performed prior to every print job

Chamber

Actively heated build environment (up to 80°C) for durable prints from engineering plastics

Enclosure

Rigid sheet-metal frame, fully enclosed; large acrylic glass door; built-in LED lighting

Software

Free and Open Source slicing software, optimized configuration presets provided

Operating Systems

Windows, Mac OS X, Linux

Power Requirements

230V AC 16A, compressed air 6-8bar 80l/min

Dimensions

approx. 80x74x220cm (WxDxH)

Weight

approx. 250kg

Included in Delivery

Tool set, Polymaker PC-Max white model material á 750g, EU power cord

Warranty Terms

12 months extended warranty

Shipping

Fully assembled and tested with CE conformity

Optional Accessories Additional print head nozzles in various diameters (Ø0.50/0.75/1.00mm), additional build sheets
